ASU Cast ® Projection

ASU Cast® is a projection technology patented by ASU.
Based on three-colour light synthesis, uniformed polarisation modulation,
and laser speckle reduction, it has a display size of 2 to 150 inches,
as well as a luminous flux value of 15 to 2000 lumens.

  • High efficacy, small-sized design
  • High-quality clear imaging
  • Wide colour gamut
  • Low cost achieved by mass producing freeform optics and semiconductors

ASU Touch® Smart Interaction

ASU Touch® Smart Interaction, another one of ASU’s patented inventions, is a human machine interface, operating by obtaining external signals (including voice, gesture, facial recognition, and object features), extracting input signals through smart algorithms, and feedbacking output instructions for the device.

1st Gen.
Infrared Touch Control

Using infrared emitter and receivers that emit and receive changes in infrared signals, the location and specifics of stylus can be determined, the corresponding feedback made, and the projector touch control can be achieved.

2nd Gen.
TOF Tech

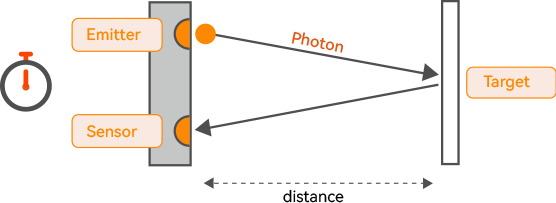

Based on the ToF laser radar distance measurement principles, target face information can be acquired by emitting laser dot matrices and analysing the laser pulse return strength and interval. Smart interactions including auto-focus and auto-keystoning can be achieved this way.

3rd Gen.
Machine Vision

By utilising mono or stereo cameras,
projection information and external environment information can be obtained through analysing information such as human gestures and projected images using AI algorithms. Devices can then complete corresponding interactive tasks including auto-focus, auto-keystoning, automatic screen adjustment and obstacle detection.

ASU Touch

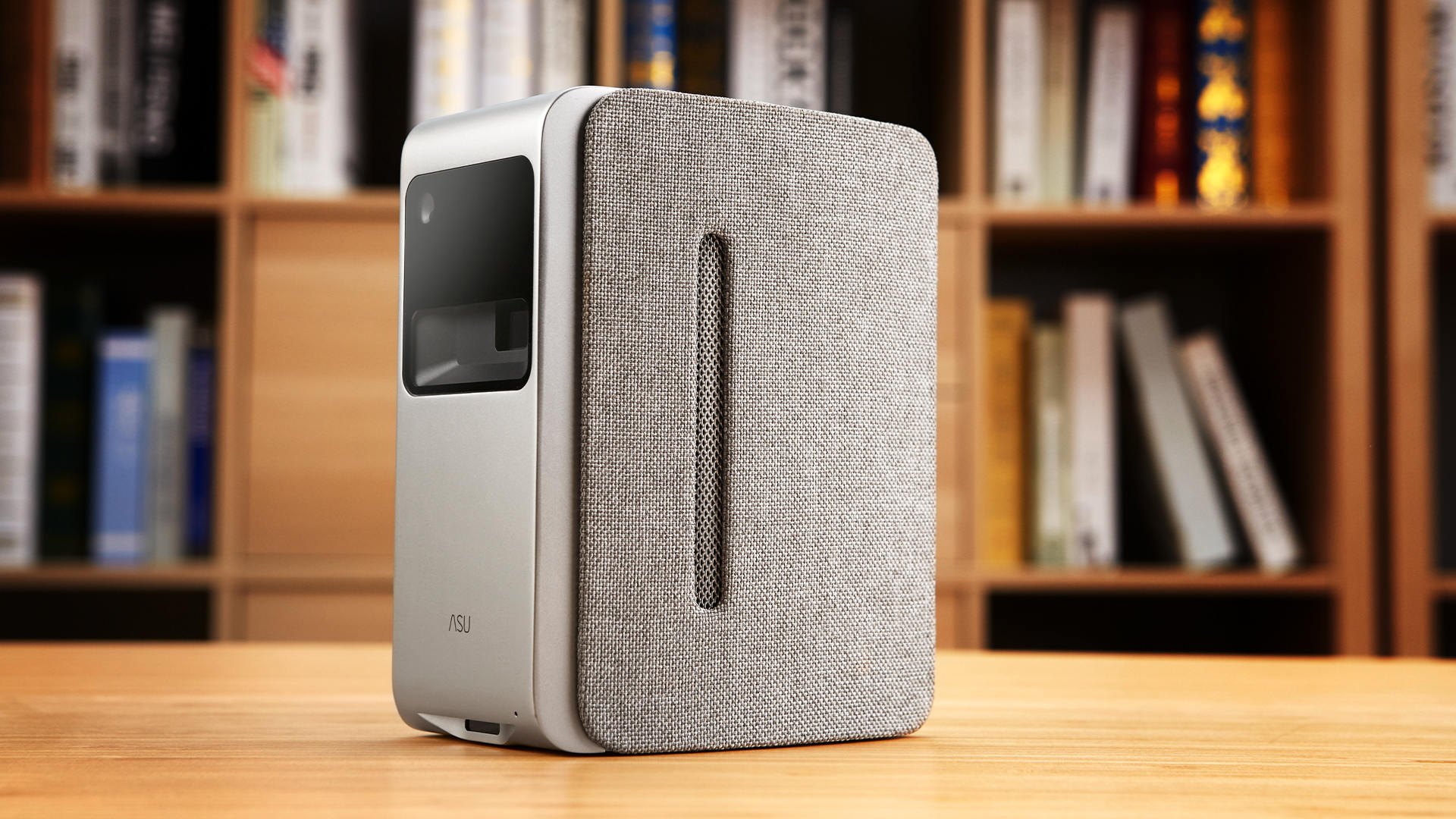

Touch-Controlled Projector

ASU LFP Light Field Display

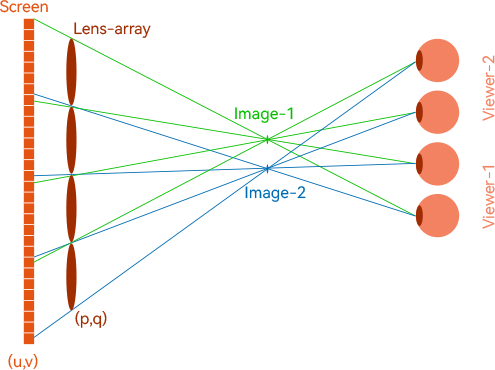

The LFP (Light Field Projection) display technology is a 4D display technology based on micro-lens arrays.

  • Uniform light distribution
  • Small device size
  • Wide range of projection distance
  • Stain resistant

ASU DLC ® LCoS Display

The LCoS (Liquid Crystal on Silicon) panel is a display technology using a liquid crystal layer on top of a silicon backplane. Imaging is achieved through controlling the angles of rotation of crystals by changing the voltage applied. The ASU DLC® LCoS Display is another one of ASU’s patented inventions.

The monocrystalline silicon backplane has high electron mobility, slim circuitry and thus a high ‘fill factor’. The reflective nature of LCoS also negates the significant loss caused when light is required to pass through the panel. Therefore, LCoS devices possess high efficacy, and can achieve high brightness with less power usage.

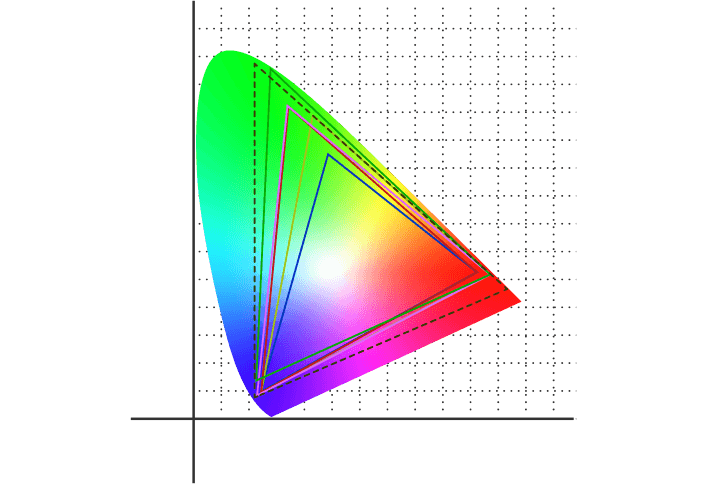

LCoS directly uses RGB laser, therefore achieving a comparatively wide colour gamut.

Looking at the size of the chips themselves, a LCoS panel of 0.37 inches in size is sufficient for a 1080p display. From an optical system point of view, only simple additional components are required for imaging.

The low cost of LCoS comes from the simple construction of components, and from using the widely adopted and economical CMOS (Complementary Metal Oxide Semiconductor) manufacture technique, and without any further investment. The resolution can also improve alongside the rapid miniaturisation of semiconductor processes.

LCoS is highly customisable thanks to its high localisation level and independence from foreign technologies.

Corresponding Modules

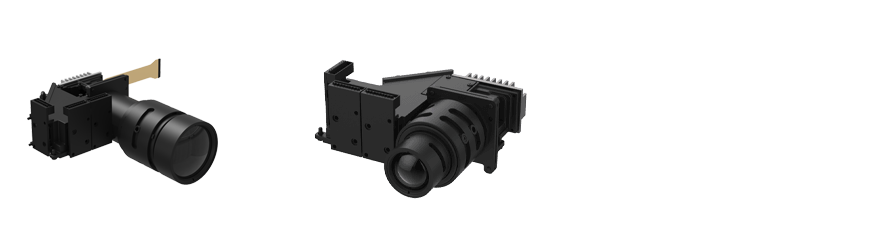

Consumer-level image engines

Automotive-standard LCoS image engine (H10)

ASU AIOPD Optical Design Software Platform

As modern technologies develop, optical systems are becoming increasingly miniaturised, sophisticated, and multifunctional. The design element of optical systems has also moved on from pure traditional geometrical optics to include light field technologies and refractive optics, to enhance design precision as well as to diversify functionality. The ways to raise design efficiency and reduce the cost of iterative processes, meanwhile, is another area of interest for pioneering optical system designs.

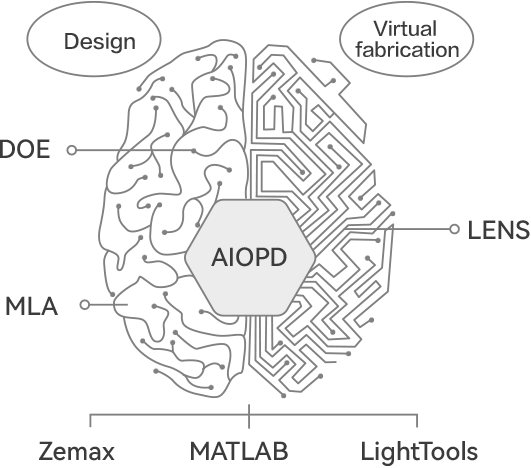

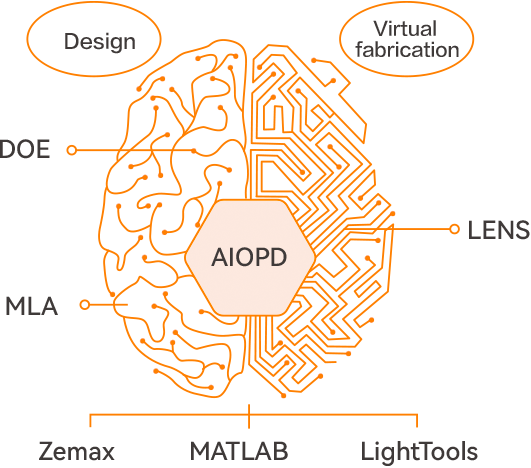

The ASU AIOPD™ Platform is an integrated AI software platform combining geometrical optics, light field technologies, and refractive optics. In addition to the greatly improved design precision and diversified functionality, the use of AI can virtually optimise and process the system designs, significantly reducing the time scale of the iterative design processes.

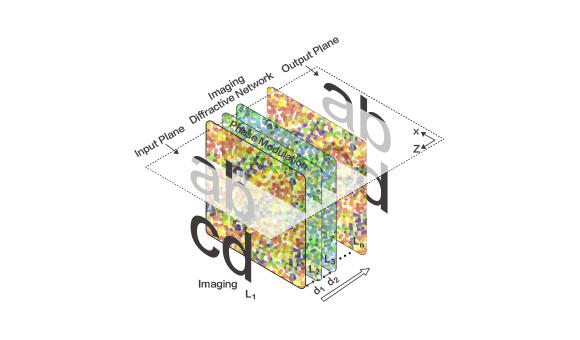

AI design and validation algorithm model of DOE components

AI-aided design

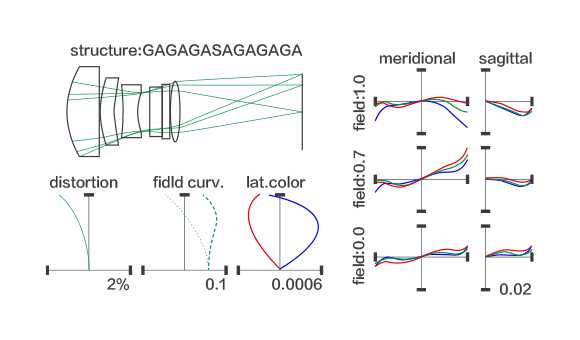

AI validation algorithm of geometrical optics with manufacturing tolerances included

AI-simulated manufacturing

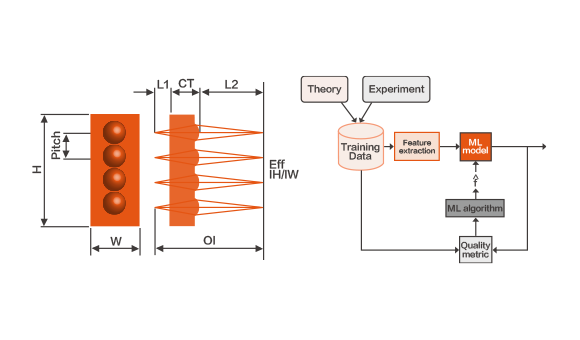

AI validation algorithm of MLA components with manufacturing tolerances included

AI-simulated manufacturing
